FPH5
 Modular high speed wrapping machine for preformed products in flow packs

The machine wraps hard candys and other preformed products in flow packs. A special version of the FPH5 is available for particularly sensitive products such as sugar coated or oiled jelly. The modular concept of the machine allows quick changeover between different product sizes. The sealing types can also be easily changed between cold sealing, heat sealing and cut-off seam welding (sealing without cross fins with subsequent shrinking of the packaging material for a particularly tight-fitting pack).

Download Datasheet

© Theegarten-Pactec GmbH & Co. KG

FPH5 packaging machine

© Theegarten-Pactec GmbH & Co. KG

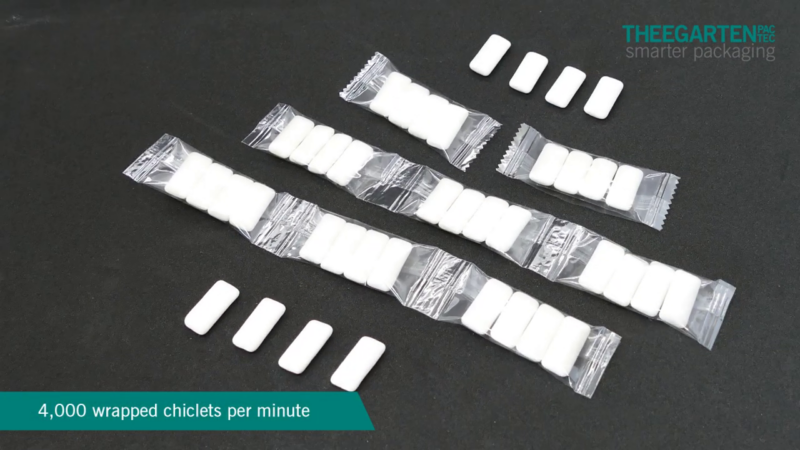

4,000 wrapped Chiclets / minute

© Theegarten-Pactec GmbH & Co. KG

Packaging process flow packs

Contact us now for your individual offer.

Request an offer

Key Features

  • 2,000 wrapped products per minute
  • 120 meter per minute packaging material speed
  • Flow Packs
  • Products suitable for plate feeding, Jelly (oiled or sugar-coated), Hard Candies (with or without centre-filling), Eclairs, Toffees

Machine Advantages

  • Processing of recyclable mono films and paper-based packaging material thanks to patented packaging material preheating system
  • Quick change of product sizes
  • Quick change of sealing type between cold sealing, heat sealing and cut-off seam welding (flow pack without cross fin)
Download Datasheet

© Theegarten-Pactec GmbH & Co. KG

1,000 wrapped jelly products / minute in flow packs

© Theegarten-Pactec GmbH & Co. KG

1,000 wrapped jelly products / minute in flow packs

© Theegarten-Pactec GmbH & Co. KG

4,000 wrapped Chiclets / minute (1,000 Four-Piece Packs)

© Theegarten-Pactec GmbH & Co. KG

1,300 wrapped hard candies (filled) / minute in flow packs

© Theegarten-Pactec GmbH & Co. KG

1,200 wrapped products / minute in flow packs

© Theegarten-Pactec GmbH & Co. KG

1,2000 wrapped jelly products / minute in flow packs (600 Two-Piece Packs)
